Our portfolio of modular air separation plants is designed to combine proven, reliable engineering blueprints with the benefits of rapid deployment, optimized layouts, cost savings and adaptability to individual needs.
Linde is one of the largest and most experienced suppliers of air separation plants and industrial gases worldwide, serving industries as diverse as metals, chemicals, electronics, energy, healthcare and manufacturing. We know that volume and purity requirements vary dramatically from one customer and project to another. In addition, time and budgetary constraints often call for proven, reliable solutions that can be deployed at speed.
Our portfolio of flexible, modular air separation units (ASUs) is the answer. Based on proven technologies, our modular designs are largely prefabricated for cost and time gains. These modular plants are also designed for the highest levels of availability, with all key cryogenic components manufactured in-house. Combined with a backup system, our ASUs offer reliability levels very close to 100 percent.
“All of our plants are designed for the highest levels of availability, with all key cryogenic components manufactured in-house.”
Our wide modular portfolio ensures you will find the perfect match for your product, purity and volume needs. Gaseous oxygen flow rates scale from 1,000 to 50,000 normal cubic meters an hour (Nm3/h) and beyond. In addition, you can select a liquid-only supply mode or combine liquid bulk with a gaseous stream of oxygen for added flexibility. Both low- and high-purity models are available.
Our modular nitrogen offering supports capacities scaling from 1,000 to 100,000 Nm3/h (see our customized offering for higher capacities). Complementing our general models offering industrial and high purity levels, customers in the electronics industry also have the option of ultra-high-purity nitrogen product for specialized applications. We also offer integrated nitrogen liquefaction units.
Our SPECTRA on-site nitrogen generation plants have been specially developed to meet the ultra-high-purity needs of the electronics industry. SPECTRA modular ASUs offer the highest level of operational efficiency for lowest cost of ownership and environmental footprint. SPECTRA capacities range from 7,000 Nm3/h to 70,000 Nm3/h.
Our INSPIRE family of modular ASUs delivers nitrogen at industrial purity levels. These nitrogen generation plants come in a range of capacities scaling from 10,000 Nm3/h to 100,000 Nm3/h to ensure the perfect fit for your individual flow requirements.
Our modular NOVON plants deliver high-purity gaseous and liquid oxygen for on-site and bulk supplies. Designed as packaged units for global road transport, NOVON supports capacities of up to 50,000 Nm3/h of gaseous oxygen with a maximized degree of prefabrication.
Often deployed in the iron, steel and non-ferrous industries, our LOGO ASUs provide an on-site stream of low-purity gaseous oxygen. With capacities ranging from 4,000 Nm3/h to 30,000 Nm3/h and purities typically extending from 90% to 97%, these modular solutions are ideal for customers who do not require the 99.5% purity level normally offered by high-purity plants.

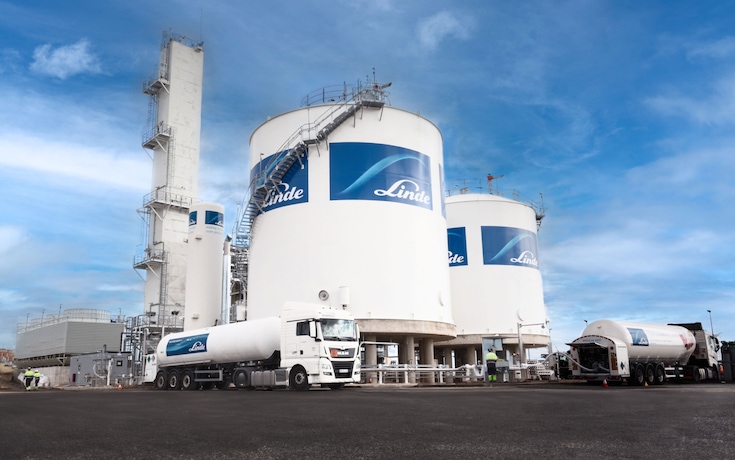

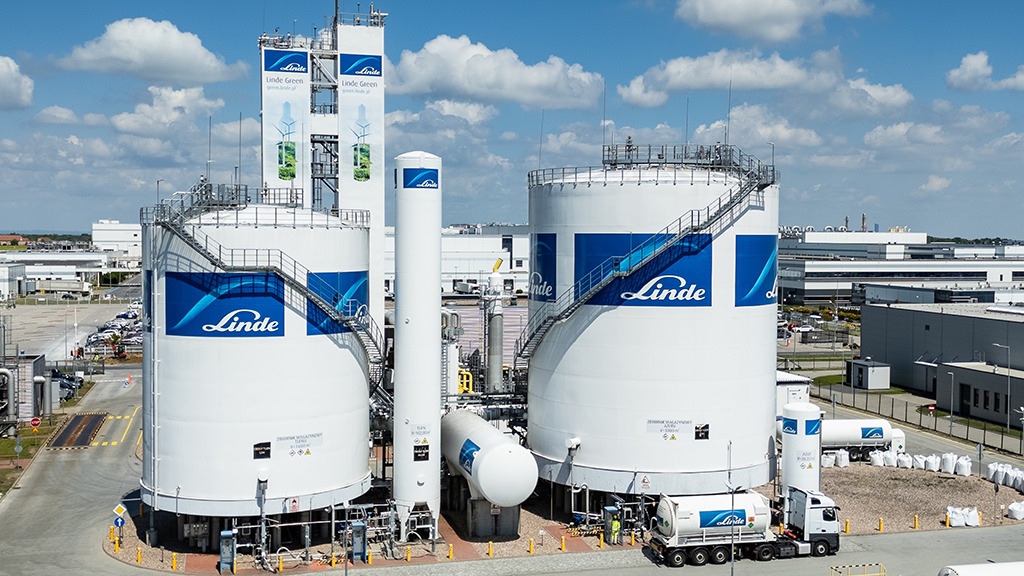

The LION plant family comprises fully standardized liquid plants that have been prefabricated to the greatest possible extent. They supply bulk volumes of high-purity liquid oxygen and nitrogen (argon also on request) to a host of applications that rely on industrial gases. The total liquid capacity of our LION ASUs ranges from 1,000 Nm3/h to 24,000 Nm3/h.
Our highly packaged standalone PULSE nitrogen liquefaction units are the ideal way to upgrade existing nitrogen capabilities. With liquid production ranges extending from 4,000 Nm3/h up to 18,000 Nm3/h, they support a wide flow spectrum. Prefabrication and pretesting allow for rapid time-to-solution and simplified on-site logistics as well as easy integration into existing plants.
Execution excellence in action
Prefabrication for rapid time-to-solution

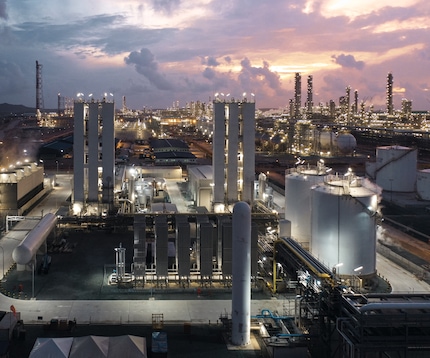

In March 2019, we successfully started up and handed over a two-train NOVON modular ASU to Pengerang Gas Solutions Sdn. Bhd (PGSSB), a joint venture between Petronas Gas Bhd and Linde. This turnkey engineering, procurement, construction and commissioning (EPCC) project in Johor, Malaysia, will supply the RAPID complex with oxygen and nitrogen at different pressure ratings. NOVON has a capacity of 1,400 tons of oxygen per day, also producing nitrogen and argon. The oxygen is required for an ethylene oxide / ethylene glycol (EO/EG) plant whereas the nitrogen will be used in refinery processes. Linde will also supply liquid argon to the local merchant market. Highlights included strict adherence to a tight two-year execution schedule, award-winning safety performance and up-front supply of low-pressure GAN from the backup system.

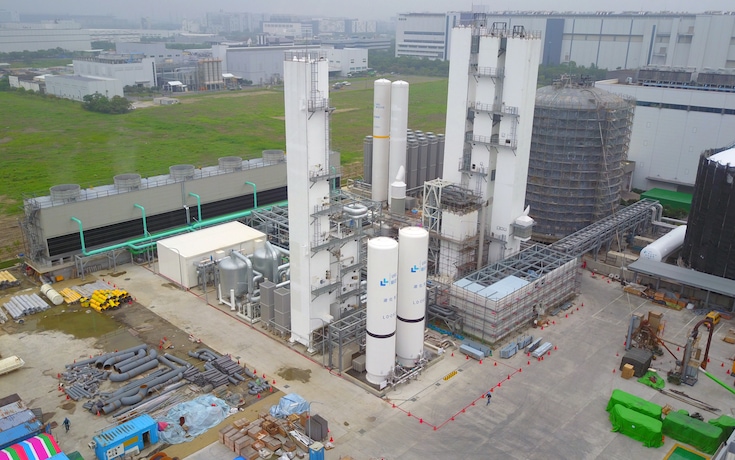

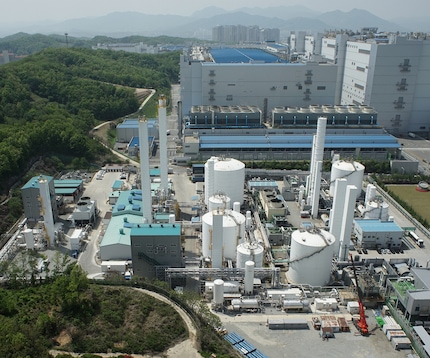

Linde LienHwa (LLH), a joint venture between LienHwa Industrial Corp. and Linde, is one of the largest industrial gas producers in Taiwan – supplying high-purity nitrogen to the Chinese electronics market from the multiple air separation plants that it operates. Expanding this complex, a new SPECTRA ASU went on stream in record time in Tainan Science Park, Taiwan, which is one of the main locations to supply the semiconductor industry with the nitrogen required for their production processes. Key success factors included the modular design of the new plant and excellent cooperation between the project execution teams on both sides. Linde was responsible for engineering, procurement and startup supervision.

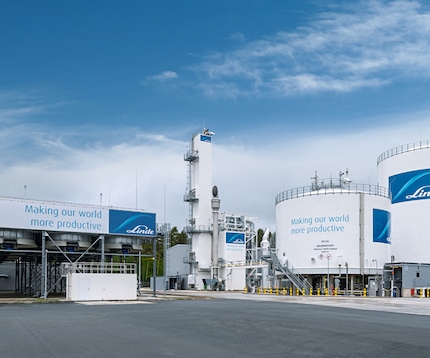

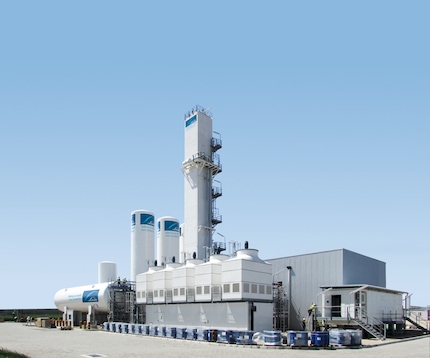

In May 2019, Linde commissioned a new LION modular air separation plant (ASU) at its Roethenbach site. Designed to support rapidly rising local demand for liquid oxygen and nitrogen in and around Nuremberg and in southern Germany, the plant has a LOX capacity of 5780 Nm3/h (with purity levels of 99.5%) and a LIN capacity of 18280 Nm3/h (with impurity levels of less than 0.5 ppb). Plants highlights include a flexible design (FLEXASU), enabling the operator to front-load production during times when there is an excess of (renewable) electricity and cut back on production when energy is scarce and thus more expensive. This FLEXASU concept has the ability to support the transition to a more sustainable energy economy.
Explore our wider air separation portfolio for customers with lower or higher volume requirements.
Tap into the experience we have gained delivering some of the world’s most impressive engineering masterpieces.
Our small on-site plants are modular units producing nitrogen.

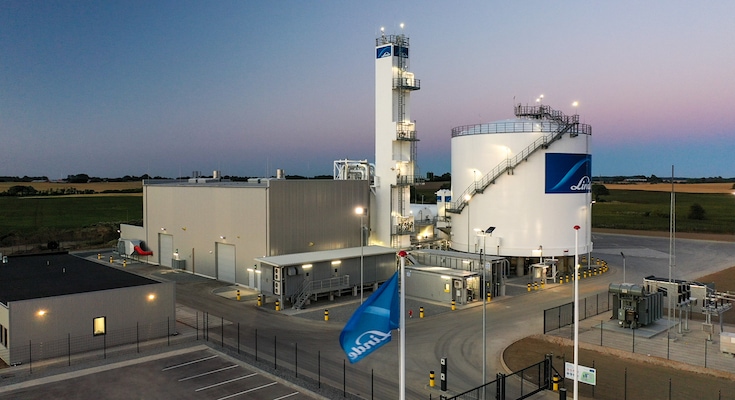

Find out how our FLEXASU concept is helping to synchronize energy supply with demand – read the full success story here.
