HISELECT® powered by Evonik membranes expand our gas separation process portfolio with a highly efficient and robust membrane technology.
Unfortunately, embedded videos are unavailable at this time.
One-Stop Service Offering Spanning the Full Range of Gas Separation Technologies

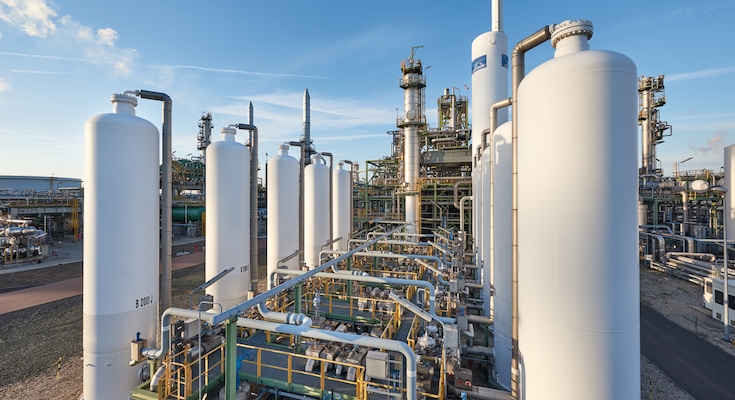

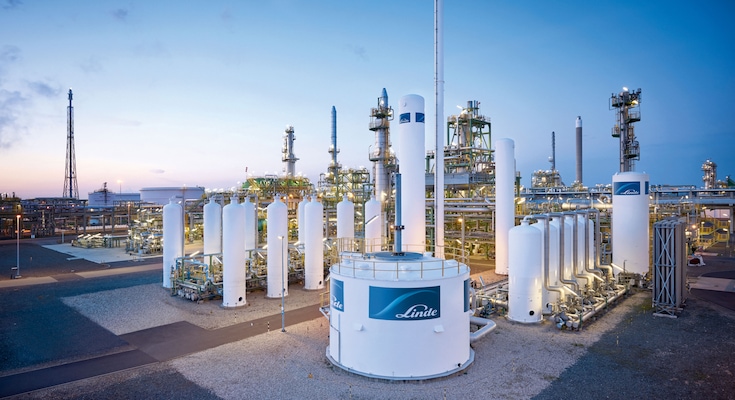

Complementing our market-leading cryogenic, absorption, pressure swing adsorption (PSA) and temperature swing adsorption (TSA) products, our HISELECT powered by Evonik membrane processes complete our gas separation portfolio. Made from hollow fibers, HISELECT membranes are highly robust even under harsh conditions, offering excellent chemical resistance and high temperature tolerance.
HISELECT gas separation membranes are available as a standalone process or can be combined with other separation technologies to create fully integrated, customized hybrid solutions. Designed to optimize both operating and investment costs, these solutions are delivered as packaged, skid-mounted units for easy installation on site or as customized builds assembled on site.
Depending on the gas composition in question, we offer tailor-made solutions to remove impurities in the gas or concentrate specific components.

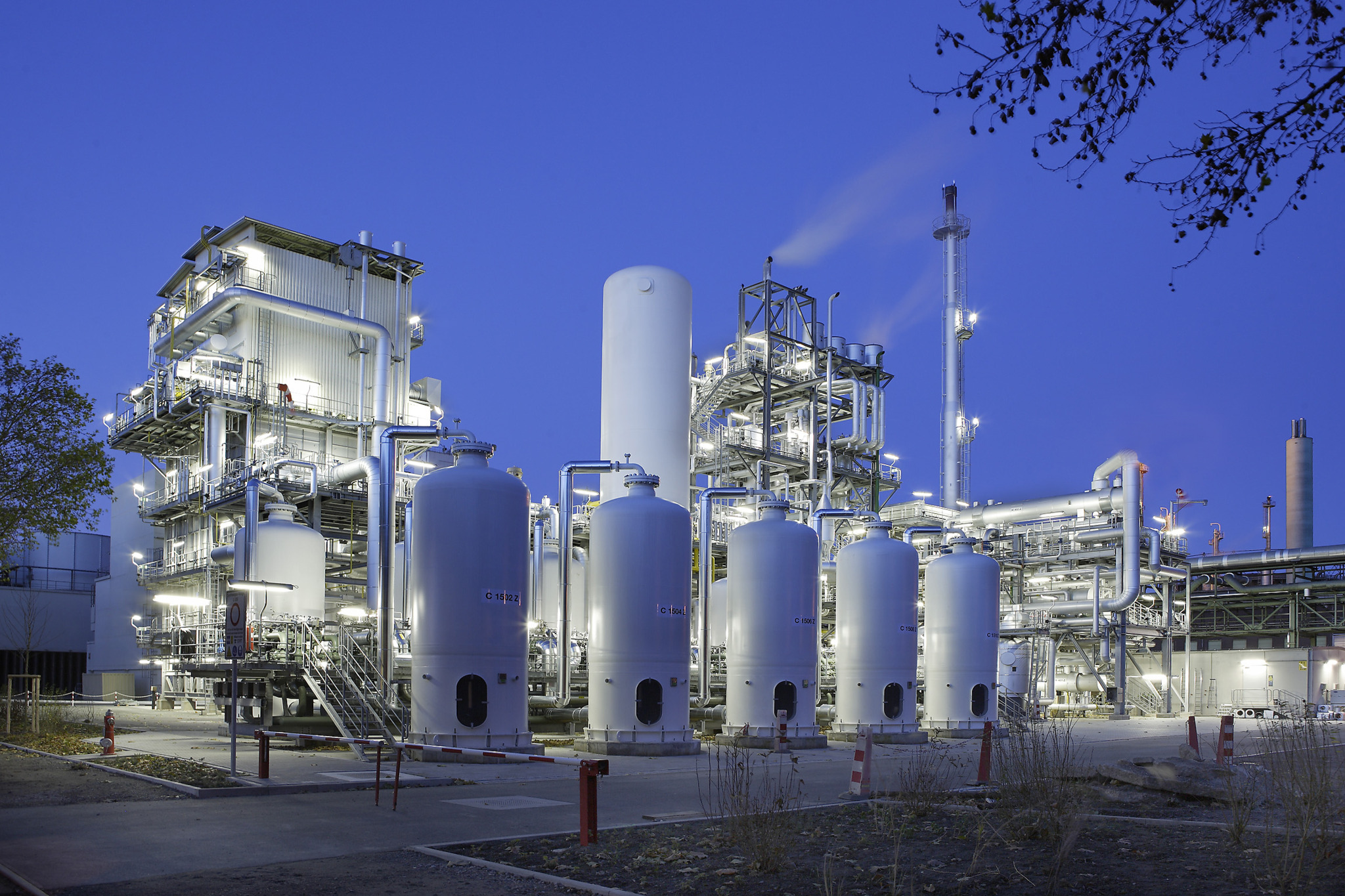

Various pre- and post-treatment steps such as PSA units for final purification, capturing of HISORP™ TSA units for HHC removal, refrigeration solutions for hydrocarbon dewpoint control as well as guard beds and filters can be individually combined. Our service experts advise customers on the best fit for individual needs, backing our plants up with operational and revamp support and general aftersales services.
It All Started with the Sweetening of Natural Gas
The HISELECT membrane was developed with a focus on the natural gas and process gas industries, where membranes are typically exposed to harsh conditions. As more and more natural gas resources with sour and acid fractions are being explored worldwide, membranes are an excellent alternative to conventional amine wash systems for acid removal.
Linde Engineering and specialty chemicals company Evonik Industries joined forces to address this challenge, developing an innovative membrane technology that enables even natural gases rich in carbon dioxide (CO2) to be processed in an energy-efficient way without the need for solvents and with a smaller footprint. HISELECT thus brings new levels of cost efficiency, selectivity, reliability and flexibility to a wider application spectrum. It can be combined, for instance, with pressure swing adsorption in a hybrid process to separate the valuable noble gas helium from a natural gas mix or used for the debottlenecking of existing CO2 wash units.
To View this video, you need to consent to social media cookies. Please click here to update your cookie setting and allow social media cookies.
Unfortunately, embedded videos are unavailable at this time.
Using Innovative Polymer Materials in Membrane Technology

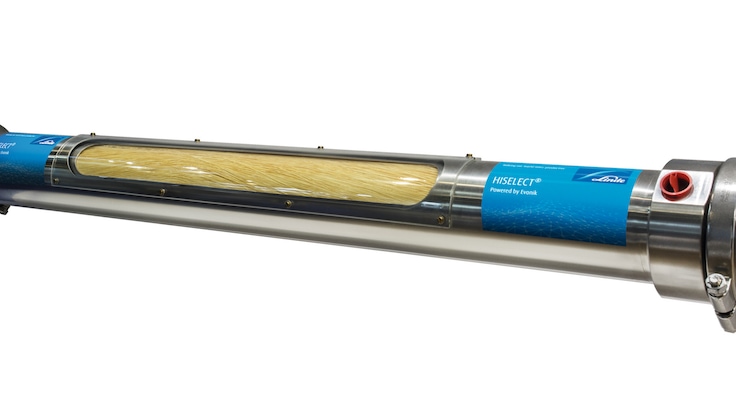

HISELECT technology is based on hollow-fiber polyimide membranes, specially developed by Evonik and tailored to various applications such as natural gas processing or hydrogen (H2) recovery from synthesis plants or refinery and chemical plant off-gases. Driven by partial difference, this membrane works like a semi-permeable barrier and separates the feed gas into a low-pressure permeate, rich in the gas to be removed or recovered (such as CO2 or H2) and a high-pressure retentate, with a low content of these components.

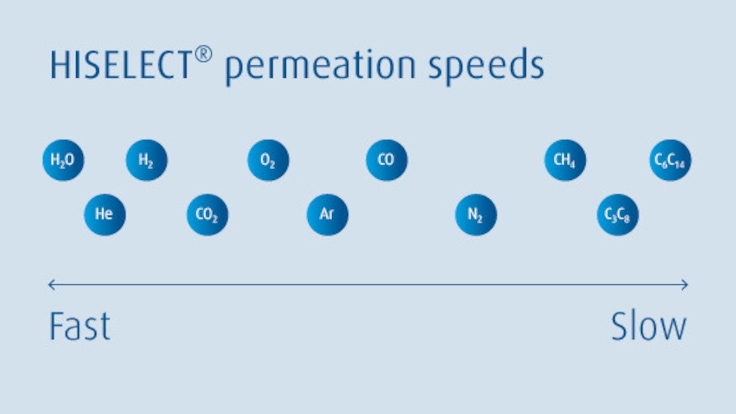

In the case of natural gas, CO2 molecules in the gas mix diffuse very rapidly through the thin polymer barrier, whereas the methane molecules have much more difficulty passing through (see permeability line on the right side). Heavier (slower) components like nitrogen (N2) and HHCs are also rejected and remain in the retentate stream.
Superior membrane selectivity and high permeation ensure high recovery rates. This changes the established design rules applicable to membrane plants for many applications in favor of fewer and smaller membrane stages, reduced energy consumption and increased availability.
Supporting a Broad Scope of Applications and Process Gases
Different HISELECT membrane cartridges have been specially developed for specific use cases. These can be combined to create the perfect fit for individual purification needs.
CO2
Removal (Natural Gas Sweetening)
HISELECT membranes efficiently remove CO2 from natural gas over a wide flow and concentration range. The membranes demonstrate superior selectivity for CO2, irrespective of HHC content and CO2 partial pressure. Additionally, strong resistance to unsaturated hydrocarbons, mechanical robustness and high resistance to hydrogen sulfide (H2S) result in low maintenance effort and a rapid return on investment.
Hydrogen
Recovery/Separation
HISELECT membranes can be integrated into hydrogen applications to recover hydrogen (H2) from ammonia synthesis purge gases. These usually consist of methane (CH4), nitrogen (N2), argon (Ar), ammonia (NH3) and hydrogen (H2).
Another application is the removal of hydrogen from process gases in refineries and synthesis gas operations, e.g. H2/CO ratio adjustment in HyCO plants or hydrogen removal in polypropylene plants.
Helium
Recovery and Purification
HISELECT membranes can be applied to helium (He) purification, configured as stand-alone systems or hybrid models combining membrane separation with pressure swing absorption (PSA) to recover high-purity He from low-concentration sources such as natural gas.
Hydrogen
Extraction from Blended Natural Gas
HISELECT membranes are an important part of the Linde hydrogen value chain. Tailored to customers' needs, the membranes are integrated in systems for the hydrogen extraction from H2 blended natural gas.
Highlights of HISELECT Membranes at a Glance
The combination of innovative polymer materials and state-of-the-art membrane technologies offers customers a number of compelling advantages
Optimized CAPEX and OPEX with Excellent Operational Flexibility
High separation capacity and outstanding selectivity enabling maximum recovery rates and highest purities
Ability to tailor membrane capacity and selectivity to customer requirements
Highest volume efficiency due to optimized packing of hollow fiber membranes
Production flexibility with wide feed range supporting temperatures up to 90°C (194°F) and pressures up to 200 bara (3000 psia)
Resistance to CO2 partial pressure up to 50 bar
Robust and stable performance over time under harsh operating conditions, reducing need for overdesign
Reduced pre-treatment effort due to excellent resistance to heavy hydrocarbons and plasticization
Mechanical resistance to process fluctuations during operation

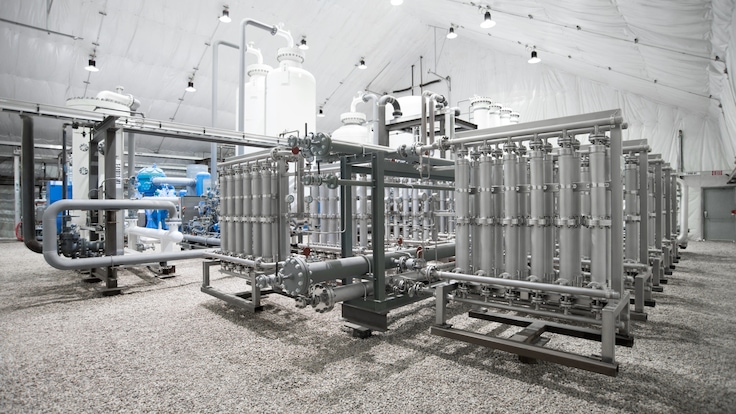

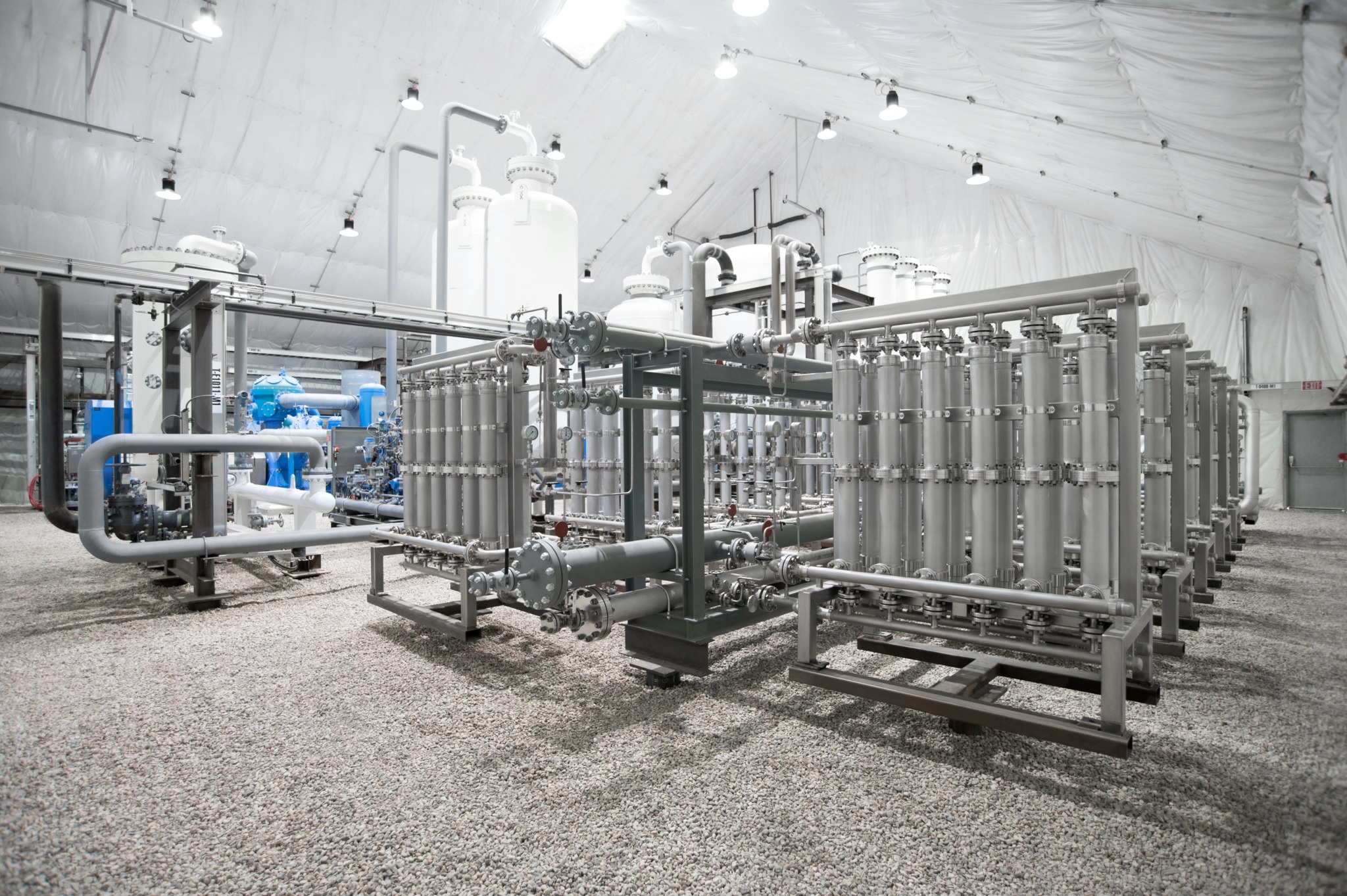

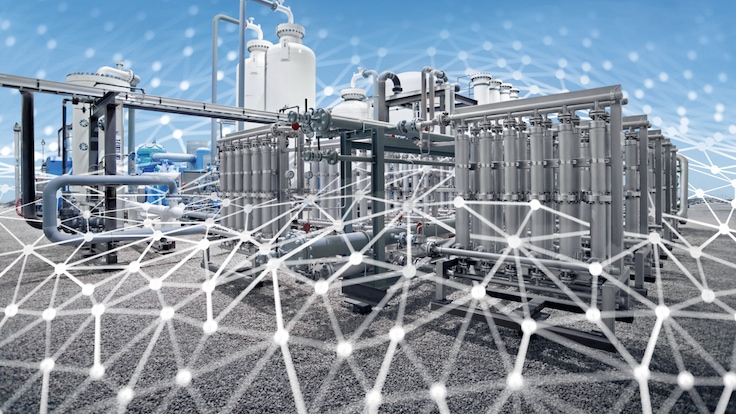

First-of-its-Kind Helium Purification Facility with Hybrid Membrane/PSA Technology
To revive the Canadian helium (He) industry, Weil Group Resources turned to Linde to help them separate and purify helium from the natural gas mix recovered at its Mankota well in Saskatchewan. This first-of-its-kind helium purification facility designed by Linde has been operational since 2016. It uses a hybrid process combining HISELECT membranes with pressure swing adsorption (PSA) technology to enrich wellhead gas from a helium concentration of 1 mol% to 5.0 quality (99.999 mol%). The facility can process 10 million standard cubic feet of feed gas a day and supplies industrial customers in Canada and the western U.S.

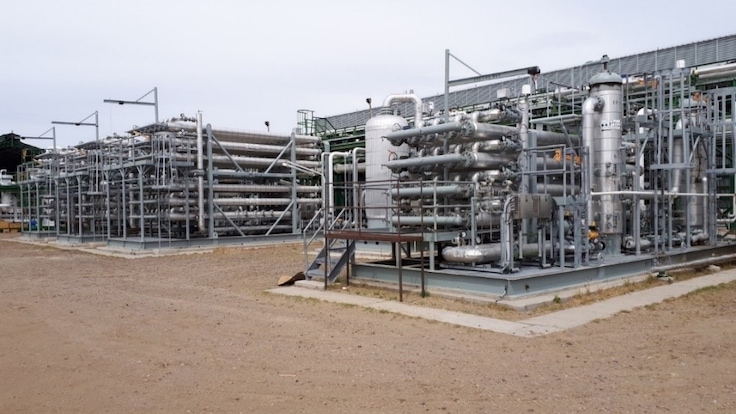

HISELECT Enables a South American Gas Company to Increase Hydrocarbon Recovery and Purity at Its Existing Natural Gas Sweetening Plant
The customer was looking to reduce methane losses while simplifying operation and increasing stability without installing new separation units. With our HISELECT membrane cartridges for natural gas, the company managed to improve hydrocarbon recovery by more than 5% relative to the cellulose acetate membranes previously used for this purpose. Additionally, it significantly reduced annual operating expenses due to the lower recycle compressor duty (10% power savings), reduced membrane replacement frequency and increased on-stream time. The membrane performance remained remarkably stable from initial start-up through extended operation, despite increases in hydrocarbon concentrations in the feed.

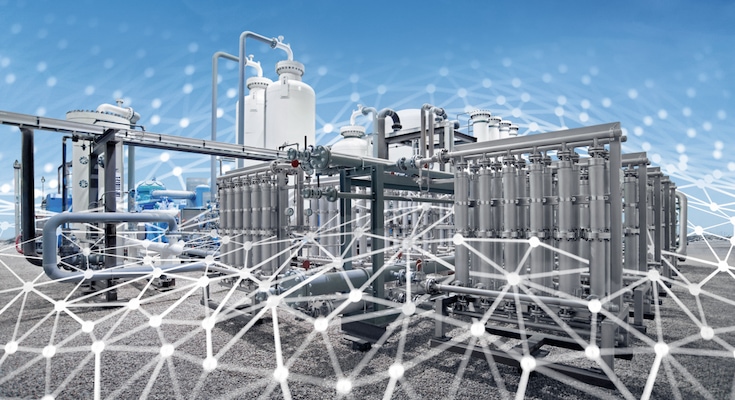

HISELECT for Hydrogen to Meet Customer-specific Needs

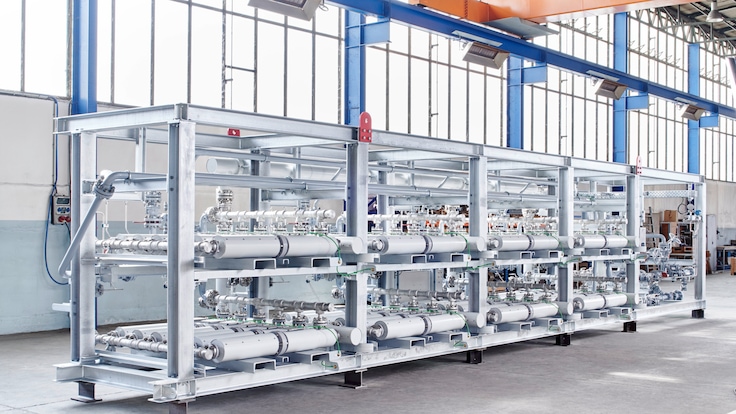

A petrochemical complex in Texas (USA) was keen to maximize methane (CH4) recovery rates from highly variable process streams. We delivered a HISELECT for hydrogen membrane unit, which the customer installed downstream of its 1.8 MMTPA ethane steam cracker. The HISELECT process unit separates feed gas containing 81 mol% H2 and 18 mol% CH4 into a retentate gas stream containing as much as 95 mol% CH4 and a H2-enriched permeate gas stream. For ease of deployment, the fully prefabricated, pre-assembled and tested membrane unit was supplied on skids complete with hydrogen sulfide (H2S) guard beds.
HISELECT Maximizes H2 Recovery from N2 Recycling Loop
A polypropylene plant in Texas (USA) is equipped with an internal nitrogen (N2) recycling process gas loop containing significant amounts of valuable H2. The owner was looking to optimize the recovery of H2 from a feed gas stream containing 20.5 mol% H2, 54.7 mol% N2 and 24.8 mol % and other trace components. With the HISELECT membrane, more than 85 % of the H2 could be removed and recycled at high concentration. The unit is equipped with a heat exchanger to superheat the feed gas and prevent any condensation in the piping and inside the membranes.
